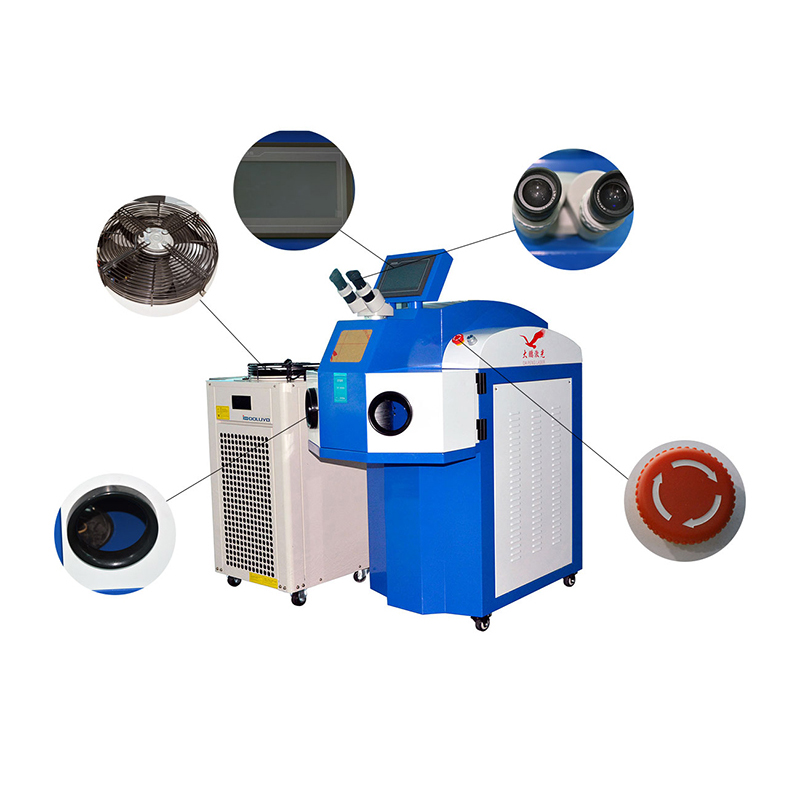

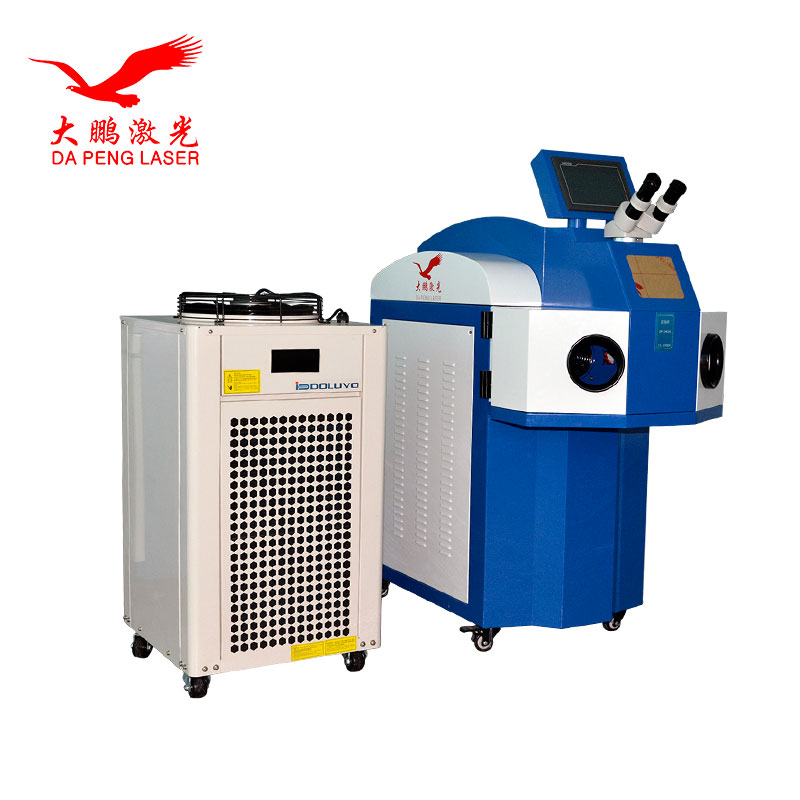

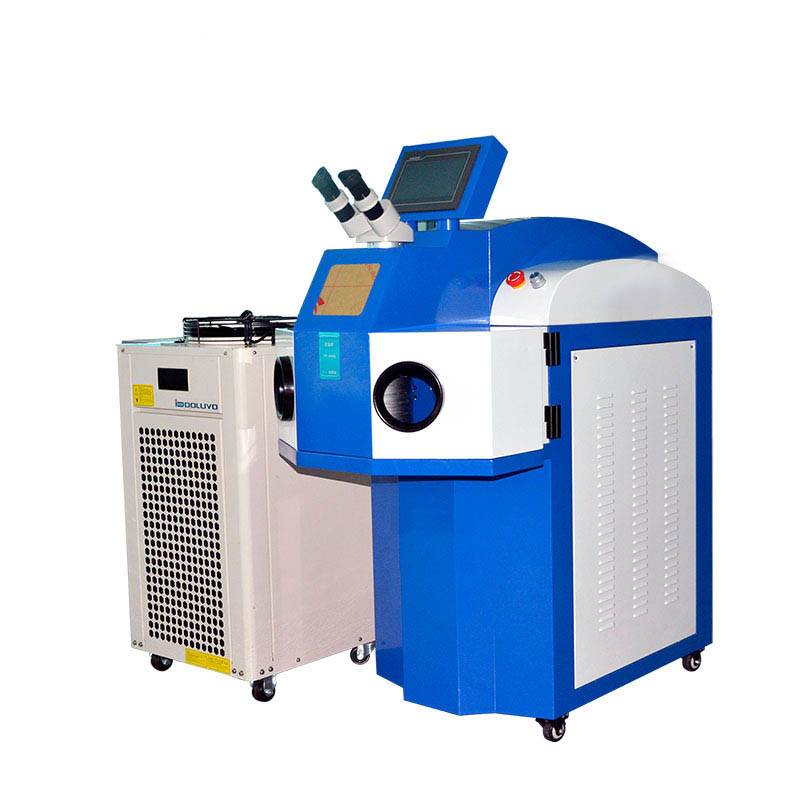

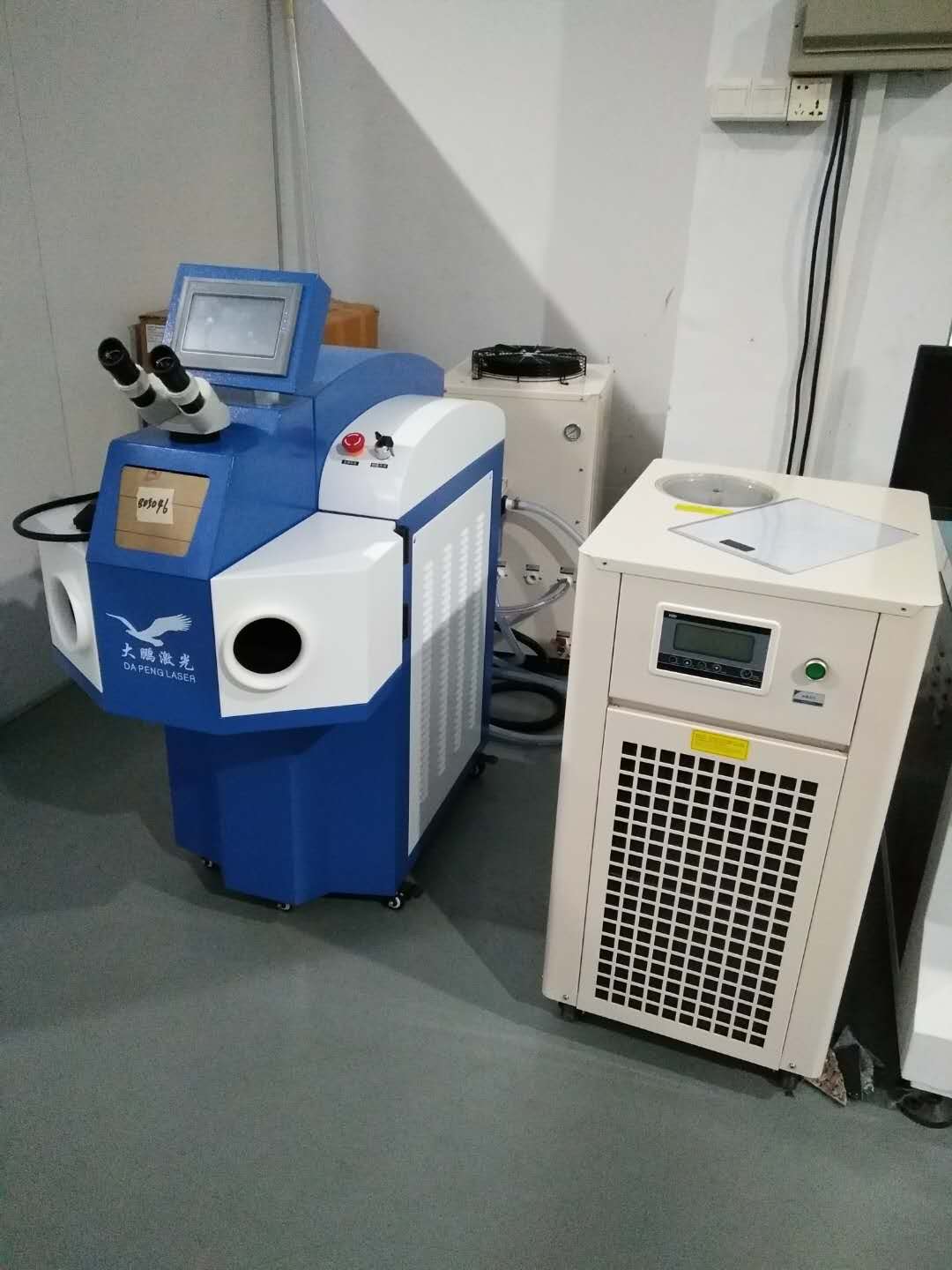

200w Jewelry laser welding machine Gold Silver brass Laser Welders External Chiller 200 Вт ювелирные лазерные сварки золотой серебряный лазерный лазерный лазерный сварщики Внешний чиллер

High speed, high efficiency, deep, small deformation, small heat effect area, high welding quality, pollution free welding spot.

Jewelry laser welder is mainly used in perforating and spot welding of white gold, platinum, carbon steel. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.

Features:

1. Ceramic converging cavity is imported from UK. Good performance of corrosion resistant and high temperature resistant. The life of xenon lamp is: Max 5 million times.

2. Able to work for 24 hours continuously, stable performance; Human-based design accords with ergonomics, avoiding fatigue after long time working.

3. Widely used in jewelry accessories, electronic components, glasses clocks and watches, hardware, precision equipment, medical equipment, auto parts, gifts and crafts, etc.

Technology parameter:

Laser power	200W
Laser wavelength	1064nm
Pulse frequency	1-20Hz
Pulse width	0.3-20ms
Spot size	0.2-2mm
Power require single phase	220V
Cooling system	Water cooling
Laser power source	8KW with touch screen
YAG Laser crystal rod	Φ7*145mm
Laser Xenon lamp	Φ8*125*270mm
Microscope	x10
Focusing mirror	F=110mm
Beam expander	Three times
Protective lens	Φ20mm
Consumables	Xenon lamp, protective lens

Standard accessories:

• Laser power supply, 1 set
• Laser crystal rod, 1set
• Focus mirror & Beam expander, 1 set
• Ceramic converging cavity, 1set
• Microscope x10, 1set
• Xenon lamp, 1set
• Protective lens, 1set
• Cooling system, 1set
• Foot switch, 1 set

Application:

Widely used in aviation,aerospace,sporting goods,jewelry,gold

head,medical,equipment,aluminum,alloy denture,instrumentation,electronic,

mechanical processing,automobile and other industries,especially for gold and

silver jewelry fill holes,spot weld lines,Mosaic forces and claw foot position welding
