Flying laser marking machine,Laser printing on the fly, Летающая лазерная маркировочная машина-DAPENG LASER

Flying laser marking machine Laser-jet Laser printing on the fly OTF Летающая лазерная маркировочная машина

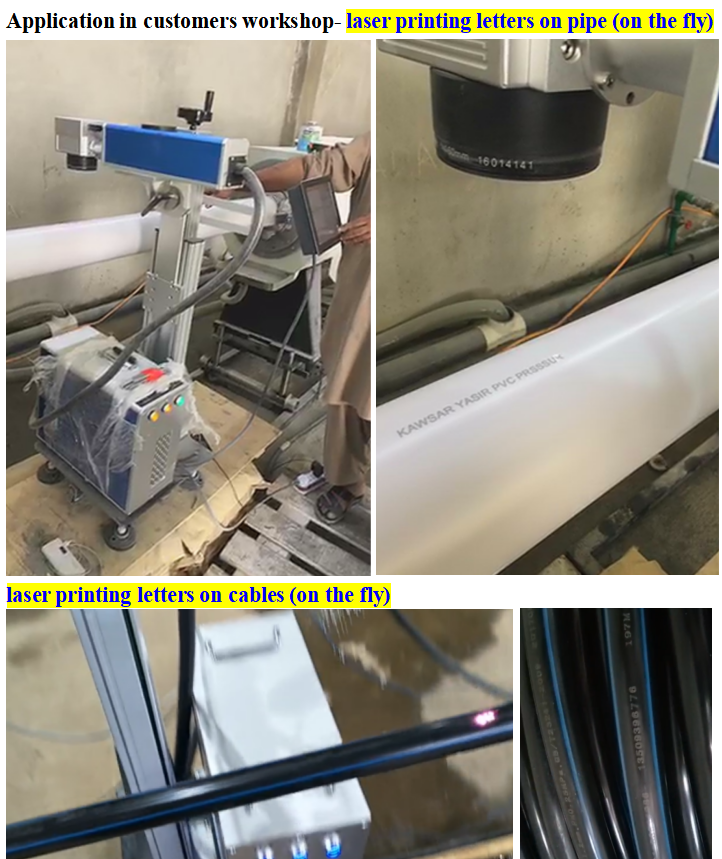

Mainly mark on tubes and pipes

Features:

1. Excellent light quality:
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
3. Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
Its processing speed is 5-10 times faster than traditional laser marking machine.
Application :
Mainly mark on tubes and pipes, Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Rubber, Spectacles,etc.
Specification:

Laser wavelength	1064nm
Power adjustment range	10-100%
Repetition frequency	20-80KHz
Output beam quality	M2:1.2~1.8
Marking linear depth	0.01-0.2mm
Min. Spot diameter	0.01mm
Min. Character size	0.1mm
Repetition accuracy	±0.02mm
Max. Liner marking speed	7000mm/s
Marking format	PLT, DXF,character,bar code,two-dimensional code,date,serial number
Field lens	150*150mm
Power consumed	500W
Electrical demand	Ac220V±10%.50HZ.10Amp
Software	Screen touch system
Cooling mode	Air-cooling
Operational Temp Range	10-40℃
Usage environment	Clean,no shaking

manager@dapeng-laser.com Whatsapp:+8618565695703 Contact KENDY and send you teaching videos and manual for free.
